Fastest running industrial-grade quadruped robot at6m/s[1]
All-rounded to cope with a variety of environments
Excellent terrain adaptability to ensure stable travel on slippery or uneven surfaces.
Climbing stairs as if they were flat.
Excellent sustained stair climbing, effortlessly tackling steps.
Remains extremely stable and balanced when climbing.
170% increase in joint performance with 360 N.m of torque
Extreme performance provids greater flexibility and stability for industrial operations.
Overcoming obstacles. Stable and tough.
Superior obstacle-crossing ability, easy to cross the mess of wood piles, 40cm high platforms and other obstacles
100% increase in sustained load 200% increase in endurance
100% increase in continuous walking with load greater than 40kg
continuous walking with 20kg load can last for greater than 4 hours with over 15km mileage.
200% increase in endurance
unloaded continuous walking endurance greater than 5 hours with more than 20km mileage
Wheeled and Legged Forms
Breaking Through Endurance Limitations
Innovative structural design of the B2 realizes switching between legged and wheeled forms (optional).
Plug-in Battery
Stable and Reliable Autonomous Charging
B2 battery supports quick change and also supports autonomous charging solutions(optional)，suitable for a wide range of solutions.

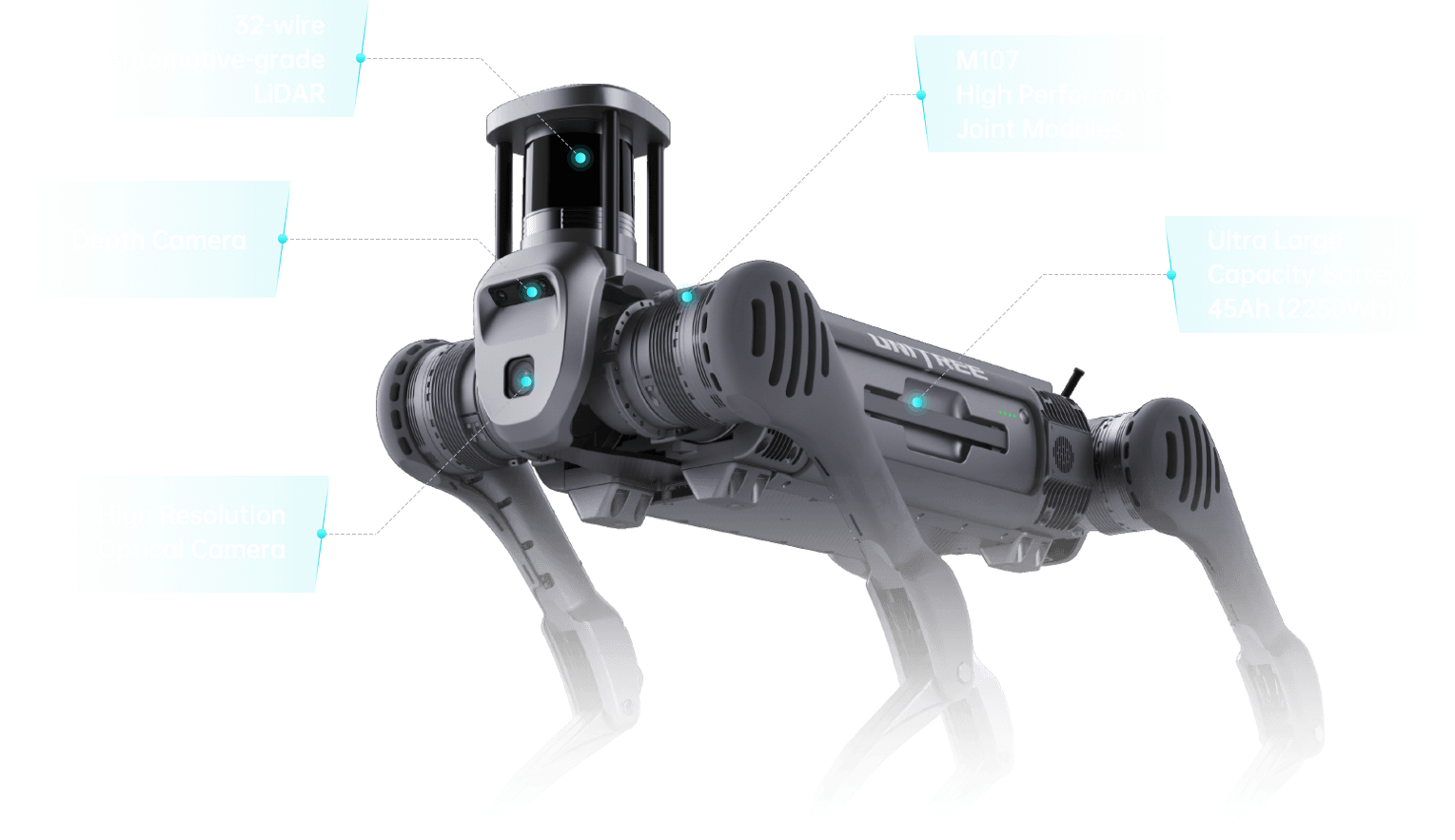

Unitree B2
Full-scene Adaptation, All-around Robot
Max Running Speed
＞6m/s
Max Joint Torque
About 360N.m
Longest Jump Distance
＞1.6m
Ultra Load
Standing load: 120kg max.
Continuous walking load >40kg
Max Walking Capacity
Obstacle crossing: Max 40cm
Slope angle > 45°
Ultra Long Endurance
Continuous walking without load >5h
20kg load continuous walking >4h
Unitree B2 The Ubiquitous All-around Assistant
Leading Industrial Intelligence in All Scenarios.
Intelligent Power Solutions Industry Application Leader —— Power Inspection
Working on all-terrain like Long Stairs, Rock Piles, Steep Slopes, etc. —— Emergency Rescue
Infrared Scanning 3DMapping Optimized Environmental Perception —— Industrial Inspection
Intelligent Power Solutions Industry Application Leader —— Power Inspection
Working on all-terrain like Long Stairs, Rock Piles, Steep Slopes, etc. —— Emergency Rescue
Infrared Scanning 3DMapping Optimized Environmental Perception —— Industrial Inspection
Unitree B2
Brand New Intelligent Species
The comprehensive performance in terms of load, endurance, motion capability and speed is two to three times that of existing quadruped robots worldwide!
- Size(Standing)
≈ 1098mm×450mm×645mm
- Size(Lying Prone)
≈ 880mm×460mm×330mm
- Weight
≈ 60kg Total weight (battery included)
- Battery Performance
Battery capacity 45Ah(2250Wh)，voltage 58V
- Endurance Ability
Battery life 4-6h
Walking without load > 5h, and the mileage > 20km
Walking with 20kg load > 4h, and the mileage> 15km
- Wheeled Foot
Optional
- Load(Standing)
Max. 120kg
- Load(Walking)
> 40kg
- Continuous Stair Climbing
Stairs of 20~25cm
- Climbing Ability
Climb up and down stairs of 40cm in forward direction
- Operating Temperature
-20℃ ~ 55℃
- Climbing Angle
> 45°
- Running Speed
> 6m/s [1]
- Ditch Jumping Width
0.5~1.2m
- Max Jump Distance
> 1.6m
- Ingress Protection
IP67
- Control and Perception
Standard Configuration: Intel Core i5 (Platform Function), Intel Core i7 (User Development)
Optional Configuration: Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices)
- Sensing Sensor
3D LiDAR ×1 + Depth camera ×2 + Optical camera ×2 (Varies with different configurations)
- External Interface
1000M-Base-Ethernet×4 USB3.0×4
12V×4 5V×1 24V×4 BAT×1
*
[1] realized in special configurations, in practice there is a speed limit for security purposes
*
Part of the function requires human operation or secondary development to realize, different configurations vary.
*
The above parameters may vary in different application scenarios and different configurations, please refer to the actual situation.
This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the robot in a hazardous manner.
Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.
